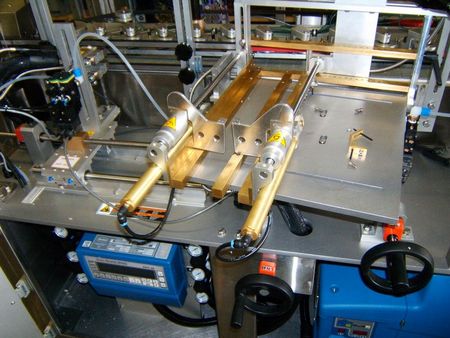

SM 1200 Wraparound and Spot Labeller
«go back


Features and Options......................
  • Quick change over of label and container sizes within 10 minutes with quick-change magazine
  • Can apply a wide variety of paper, foil and laminate labels to glass, metal or plastic round containers using both hot melt and cold glue adhesives
  • This Hot Melt Labelling Machine is all Stainlees Steel and Anodized Alluminum in its construction
  • A system specific set of options can be tailored for each application
  • Singleand Twin Infeed Screw Systems with container gatingcontrols are available options
  • Minimal change parts and inexpensive to operate


Downloads......................................

Specification..........................................
Conveyor Height

34" (846mm) minimum

Speed

Up to 500cpm, subject to container and label specifications.

Container Type

The SM 1200 can label most types of cylindrical glass, metal, board or plastic containers.

Container Size Range

Minimum Diameter:
SM 1200 1 1/2" (38mm)
SM 1200X 2" (50mm)
Maximum Diameter:
SM 1200 4" (101mm)
SM 1200X 6 1/4" (165mm)
Minimum Height:
2" (50mm)

Label Size Range

(Single Wraparound & Spot Labels)
Minimum Length:
4" (102mm)
Maximum Length:
SM 1200 13" (330mm)
SM 1200X 20 3/4" (527mm)
Maximum Height:
7 1/4" (184mm)

Drive and Electrics

3 hp VFD conveyor and turning belt drive
1hp infeed drive

Standard 230Vac 30 amps. 3phase 60hz.Power Requirements **other voltage options are available


Description...........................................

If you are looking for a simple, reliable way to apply wraparound and spot labels on cylindrical containers at speeds of up to 500 cpm then this efficient and cost effective machine is the perfect solution proven in multiple facilities the world over.
